Fox Shocks are world renowned as a premium brand of off road racing shocks. Made in America, they are renowned for superior handling under extreme events such as the BAJA 1000 and other desert racing competitions.
Freecall 4WD World on 1800 807 176 | Text us on 0419 430 890
Ideal For…
tough 4WD and off road conditions
Australian Warranty
For Australian conditions
4WD Experts
40 years of auto industry experience
Why Fox
- World renowned premium brand – proven in the BAJA 1000, Finke Desert Race, Australian Safari and Dakar.
- For Australian conditions – built for tough 4WD and off road use.
- 40 years of auto industry experience behind the fitment advice.
- Smooth ride and superior handling – the 2.0 Performance Series fitted to road-going 4WDs is derived from the competition versions and uses similar technology, on or off road.
Product Range

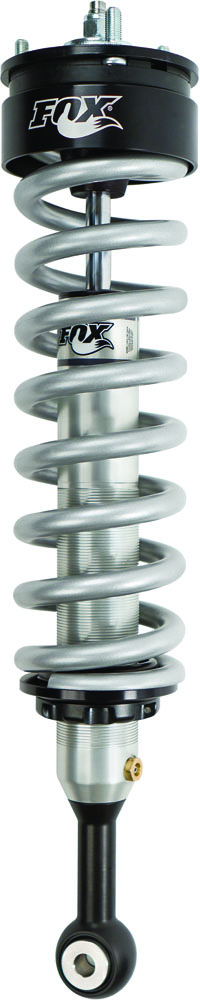

FOX 2.0 Performance Series Coil-over IFP
Our bolt-on Performance Series coil-over shock is loaded with advanced technology and a long list of features that set it apart from the competition. The precision, impact extruded aluminium body increases cooling capacity and is rust resistant.
The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration. A spring preload ring allows ride height and preload adjustment and retains a top quality racing spring, selected to deliver the optimal spring rate for your vehicle.
Performance Series coil-overs bolt on with no modifications and are designed to level your vehicle front-to-rear. Applications are available for stock and lifted trucks that re-use the stock mounting positions.

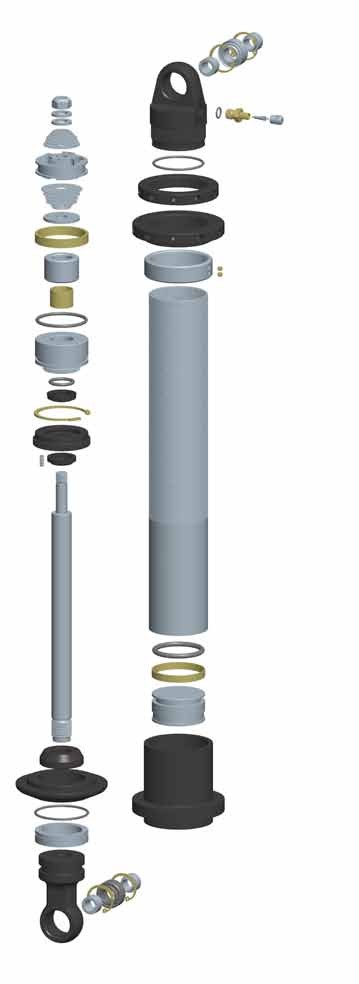

Overview
- Preload ring – fully adjustable for ride height levelling and precise coil preload adjustment.
- Internal Floating Piston (IFP) – isolates the shock fluid from the high-pressure nitrogen charge, assuring maximum damping and sustained fade-free performance.
- Aluminium body – incredibly strong and light weight. Impact extruded aluminium provides superior cooling and resists rust.
- Application specific mount – Nitrile rubber isolator pad absorbs vibration and road noise for a quiet, comfortable ride.
- Race-style design – allows factory servicing. Components that wear can be replaced by factory technicians, restoring the shock to peak performance.
FOX 2.0 Performance Series IFP Smooth Body Shocks
Performance Series smooth body shocks contain the latest in shock technology to transform the performance of your truck or SUV. They use race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
The precision impact extruded aluminium body increases cooling capacity and will never rust. Inside you will find race-proven performance valving technology. Depending on the application, it is available with an internal IFP reservoir or external reservoir with billet aluminium mounting clamp.
Overview
- Internal Floating Piston (IFP) – isolates the shock fluid from the high-pressure nitrogen charge.
- Aluminium body – strong, light, superior cooling, will never rust.
- Optional roost shield – protects the shock shaft and seals from rocks kicked up by tyres.
Accessories

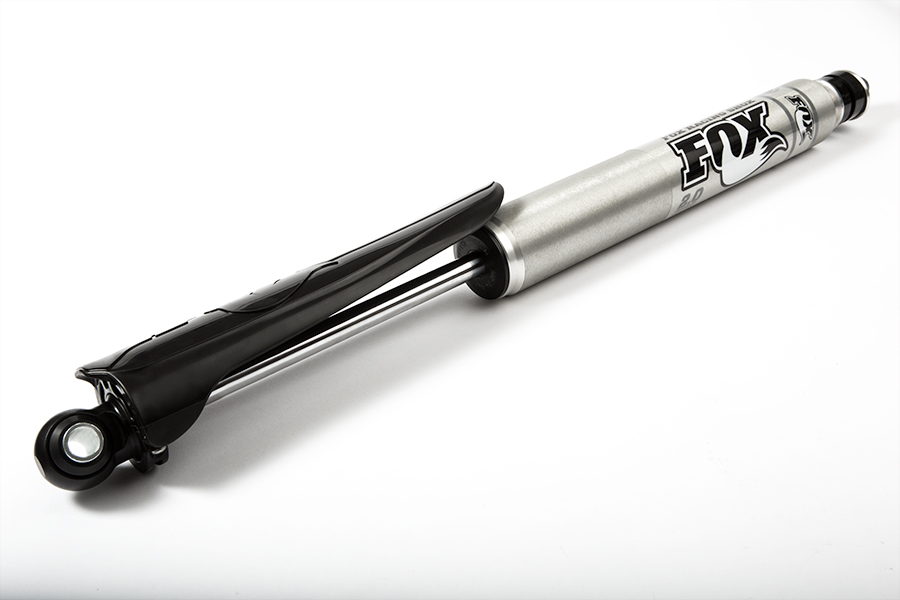

Optional Roost Shield / Shaft Guard – protects the shock shaft and seals from rocks kicked up by tyres. Securely attaches to 2.0 Performance Series IFP and 2.0 Evolution Series IFP shocks.

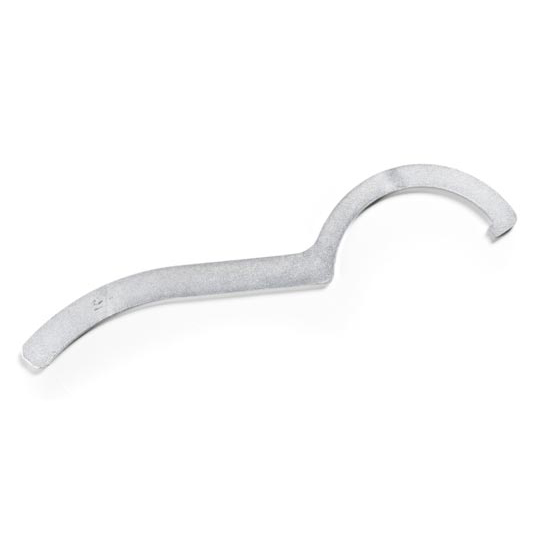

Fox Coil-over Tooling Spanner, Large Bore – zinc plated steel wrench for quick and easy preload adjustments on 2.0 diameter coil-over shocks.

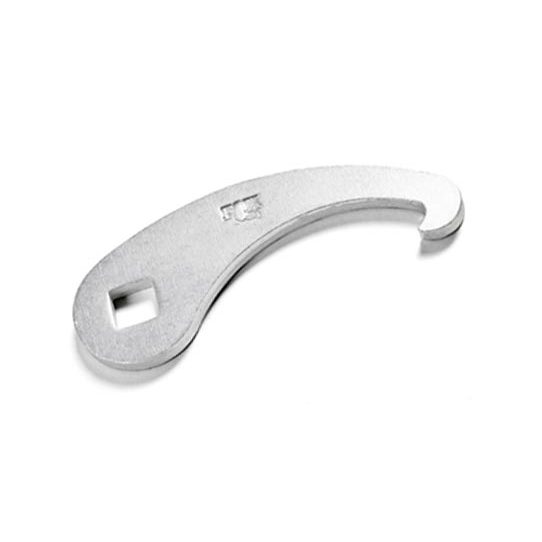

Fox Coil-over Tooling Spanner, Adjuster 3/8 Wrench – adjust 2.0 coil-over preload and 2.5 rotating remote and piggyback bridges with a standard 3/8″ ratchet wrench.

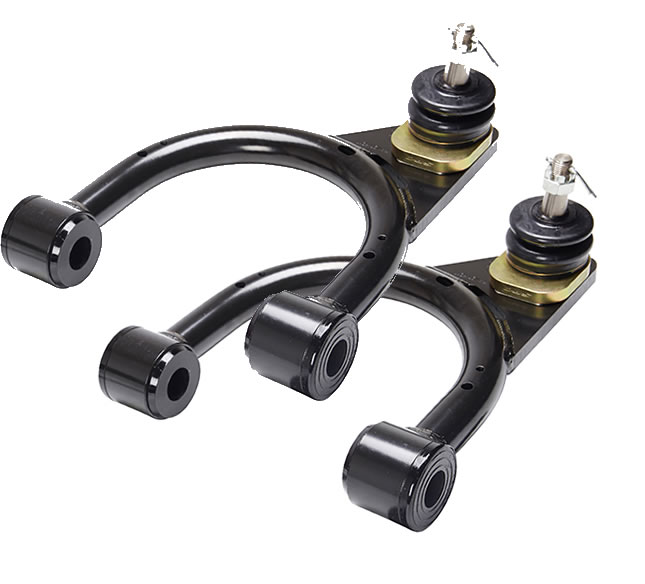

Adjustable 4WD Upper Control Arm Kits
A product made in the USA by Cal Offroad. Used when suspension lift kits are fitted and the front suspension runs out of adjustment at wheel alignment.
They provide an additional 2 degrees of castor and from zero to 5 degrees of camber. This improves wheel alignment and steering, giving better handling and improved tyre wear.
- Built using an OE style ball joint and bushings.
- Improved clearance for tyres and suspension components.
- Made of high grade chromoly tubular steel.
Upper control arm ball joints are also available as a spare part for OE suspension 4WDs with coil front suspension.
Optional Front Heavy Duty Coil Springs
Where a heavy steel bar, electric winch or other accessories are fitted, it may be necessary to fit special heavy duty platinum series coils to the 4WD. These are first quality Australian made and are available as part of a heavy duty raised Fox 4WD suspension kit.
Call us to discuss on 1800 807 176.
Eibach Coils and Kits
Eibach are German made cold wound performance coil springs, compatible with Bilstein and Fox shock absorbers. These are highly regarded as the top of the line product for improving vehicle handling without compromising ride quality.
Popular fitments include European luxury sports cars, some 4WD vehicles including the Volkswagen Touareg, and standard or lowered height sets.
Eibach kits including Bilstein shocks are available for some European makes and models, comprising Eibach coils and Bilstein shocks.
- Eibach coils are standard equipment on B14 and B16 Bilstein coilover kits available through us.
- They are also standard on Fox 4WD coilover kits for popular utes such as the Toyota Hilux, Nissan Navara, Ford Ranger, Mazda BT-50 and Toyota Prado.

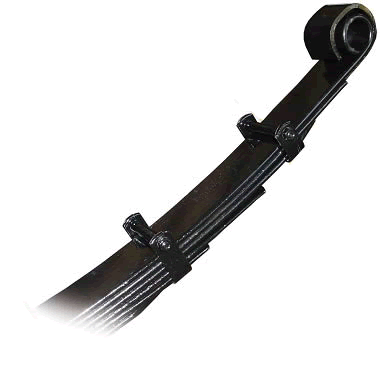

Leaf Springs
Our Fox 4WD kits include quality leaf spring packs with a suitable weight carrying capacity to suit the load you are carrying, including the tow ball weight your van or trailer puts on the rear suspension.
These are a quality multi-leaf spring pack and include greaseable shackle bushes plus new longer U-bolts. They ensure a comfortable ride with excellent handling under all road conditions.
Talk to our sales staff about your ute and a suitable Fox 4WD suspension kit to improve ride and handling.
Technical Info
Fox Shock Specifications
| Body | 2.0″ metal impacted 6061-T6 aluminium, will resist rust over time |
| Body plating | Clear-anodized for a durable finish |
| Internal reservoir | Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminium |
| Shaft | 5/8″ hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application specific valving to maximise performance |
| Seals | Redundant sealing pack system: main seal, wiper seal, scraper seal |
| Oil | JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
| Bushings | Quiet nitrile rubber allows for increased suspension articulation |
| Mounting | Direct replacement for stock and aftermarket lift kits |
Fox Coil Over Specifications
| Body | 2.0″ metal impacted 6061-T6 aluminium, will resist rust over time |
| Body plating | Clear-anodized for a durable finish |
| Internal reservoir | Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminium |
| Shaft | 5/8″ hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application specific valving to maximise performance |
| Seals | Redundant sealing pack system: main seal, wiper seal, scraper seal |
| Oil | JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
| Bearing | Large diameter, heavy-duty spherical |
| Mounting | Direct replacement for stock and aftermarket lift kits |
Made in the USA
Fox are made in the USA and are built to the highest technical specifications. They are derived from the technology Fox have developed over 30 to 40 years of off road racing, including victories and class wins in the toughest events such as the BAJA 1000, Finke Desert Race, Australian Safari and Dakar.
It is only recently that Fox have released a non-racing product suitable for road going 4WDs and SUVs.
Get a quote
To discover the benefits of Fox Suspension, freecall 4WD World on 1800 807 176, text us on 0419 430 890, or send an enquiry below and we will get back to you.
